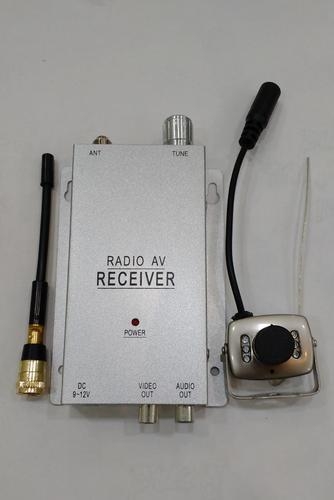

This wireless Camera shows live video on TV/LCD. There is no connection between video receiver and camera. Camera has high quality colour image sensor. Wireless range is 20-30 meters inside building within block and wireless range in open space is around 80-100 meters.

Specifications:

Camera:

Imaging sensor: 1/3" 1030 CMOS Senor
CMOS total pixels: Pal 628 x 582; NTSC 510 x 492
Horizontal resolution:420 TV lines
View angle: 90 degrees
Minimum illumination: 1.5 Lux / F1.5
Gain control: automatic
Frequency: ISM 900MHz ~ 1,230MHz
Transmission power: 10mW
Modulation mode: Fm
Consumption current: 80mAh
Operating humidity: 85% RH
Operating temperature: -10C ~ 50C / 14F ~ 122F
Storage temperature: -40C ~ -85C / -40F ~ 185F
Dimensions ( W x L x H ): 66 x 23 x 23 mm
Unobstructed effective range: 100m
Power Supply :DC 8V

Receiver:

• Receiving Frequency: 0.9/1.2Ghz
• Intermediate Frequency: 480Mhz
• Receiving Sensitivity: <-85dBm
• Video OUT
• Channel tune multiple cameras
• Frequency Stabilization: /-100Khz
• Demodulation Mode: FM
• Antenna: 50ohm SMA
• Power Source: 9-12v
• Dimension: 120x81x20mm

Package Included:

• 1X Wirless Mini Camera
• 1x Wireless Receiver
• 2x Power Adapters
• 1X AV Cable
• 1 x Battery clip for camera

Note: The battery is not included
